Product Details
WALLFORM SYSTEM AND SHUTTERING

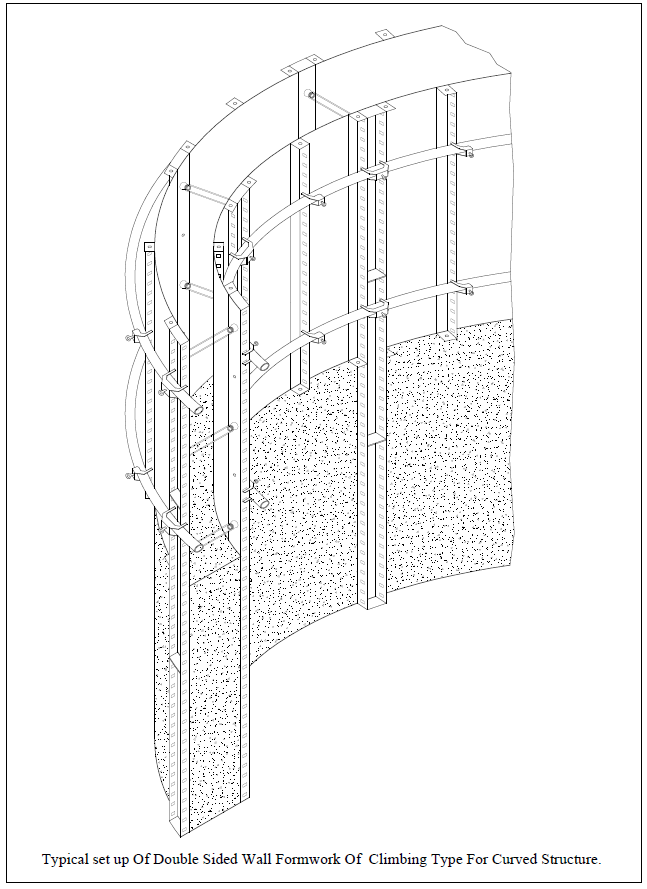

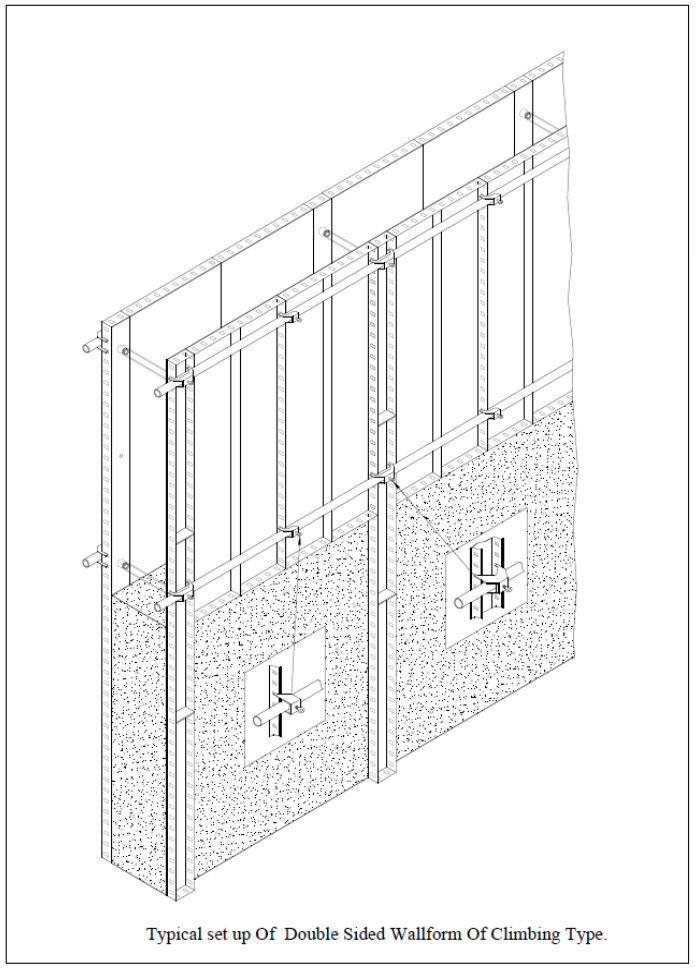

WALLFORM CLIMBING TYPE SHUTTERING
WALLFORM SYSTEM CONSISTS OF STANDARD PANELS MANUFACTURED OUT OF 2.5MM(12G) SHEETS WITH SLOTTED 45*45*5MM ANGLES FRAME AND STIFFER, CHANNEL OR HEAVY DUTY SOLDIERS AND TUBES/CHANNEL ALL THESE COMPONENTS ARE CONNECTED TOGETHER BY TYPES OF CLIPS OF SPECIFIC DESIGN. SOLDIERS SUPPLIED IN 2.5M AND PANELS IN 1.25M HEIGHTS FOR HIGH POUR CONCRETING, SPECIAL SOLDIERS IN 3.5M HEIGHT ARE ALSO SUPPLIED.
|
ITEM |
SIZE |
|
WALLFORM |
1250*500 MM |
|
LIGHT DUTY CHANNEL SOLDIER |
2500*100 MM |
|
HEAVY DUTY CHANNEL SOLDIER |
2500*100*238MM / 3000*100*238 MM |
|
CANTILEVER BRACLET |
1100*1200 MM |
CONCRETE HARDWARE :
Coil Ties, Water Seal Ties & Loops 12 & 20 mm dia. Ties in length to suit wall thickness and 100 & 150 mm Single and 225 Double Loops.
|
|
|
||||||
|
|
|
|
||||||
|
|
|
||||||
|
|
|
|
||||||
|
|
