SCAFFOLDING

STAGING

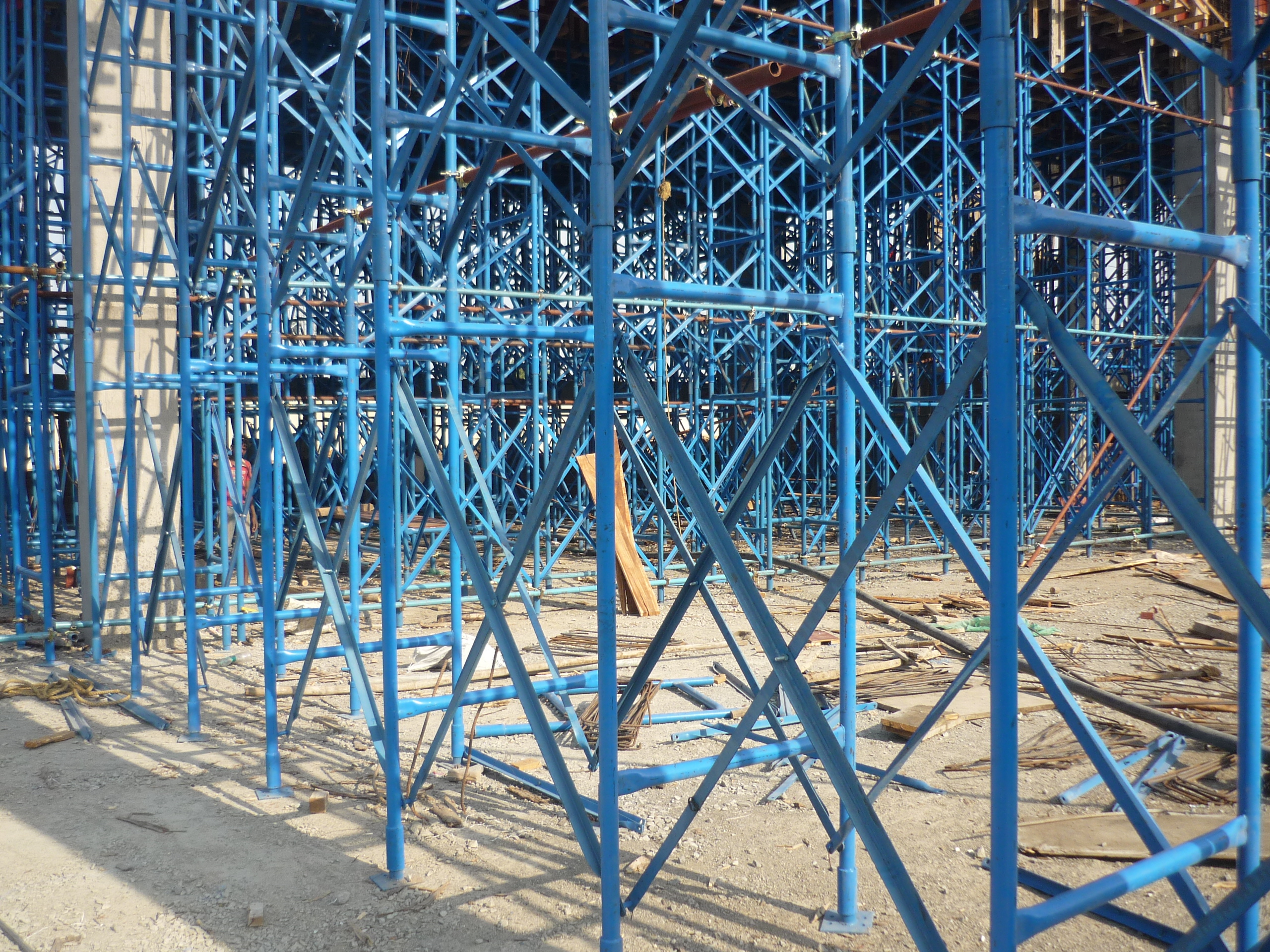

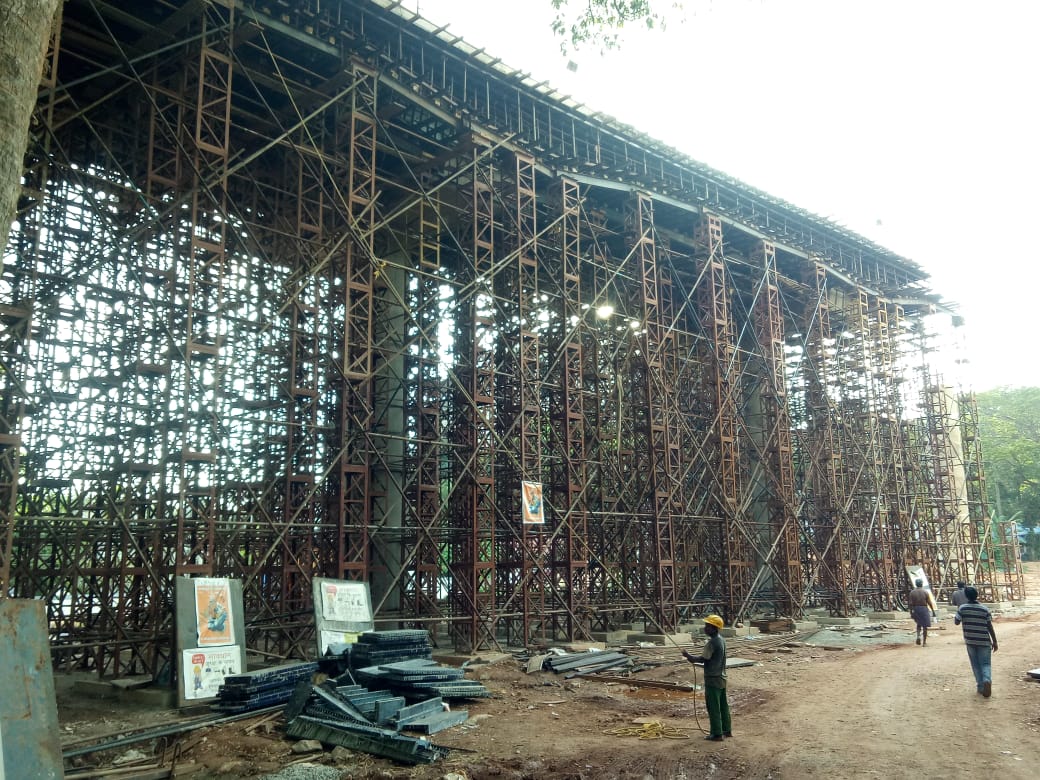

THE COMBINATION  OF H – FRAME AND  SCISSOR  CROSS BRACING  CAN BE  USED  AS STAGING  FOR FLOOR SLABS AT  MORE HEIGHTS OF COMMERCIAL  INDUSTRIAL  BUIDINGS  AND  ALSO  FOR  STAGING  OF BRIDGES, FLYOVER.

H – FRAMES MADE OUT OF 40 NB B CLASS PIPES,

SCISSOR CROSS BRACES MADE OUT  OF  37 *  37  *3  MM ANGLES

CUPLOCK   SYSTEMS

•SPIGOT  CONNECTORS

  VERTICALS  ARE  CONNECTED  END  TO  END  BY AN INTERNAL  SPIGOT  (SQUARE OR ROUND ) .THIS IS BOLTED  TO LOWER  AND   UPPER  VERTICAL. OTHER  NON STANDARDS  SIZES OF VERTICAL  /  STANDARDS  AND HORIZONTAL  LEDGERS  COULD BE  MADE AVAILABLE  ON REQUEST.

EASIEST  TO  ERECT  SYSTEM  HAVING  POSSIBILITIES OF  CONNECTIONS IN FOUR  DIRECTIONS AT SAME  LEVELS. IDEAL  FOR PROVIDING ACCESSS  PLATFORMS, BESIDES ITS VERSATILITY FOR  STAGING AND  ACCESS  AROUND  ANY  STRUCTURES. THE TOP  CUP  ALLOWS  LOCKING  AND RESISTS  SABOTAGE. IT CAN BE ERECTED  BY UNSKILLED  LABOUR , EASILY  STORED  AND   MAINTAINED AND CAN BE USED IN  A VARIETY OF APPLICATIONS AS FORMWORK SUPPORT, CIRCULAR  ACCESS SCAFFOLDING , GENERAL  ACCESS SCAFFOLDINGS, ETC

MADE  OUT  OF 40 NB ‘B’ CLASS  PIPE  CONFORMING  TO IS 1161/1239 TOP / BOTTOM CUPS ARE  PROVIDED

 AT  500MM c/c &  1000mm c/c.

MADE OUT OF  40 NB ‘B’ CLASS  CONFORMING  TO  IS 1161/1239.  FORGED END BLADES  WELDED

  TO  BOTH ENDS OF TUBES
